EC90 AX Wheels EC90 AX Wheels

Seek more. stop less.

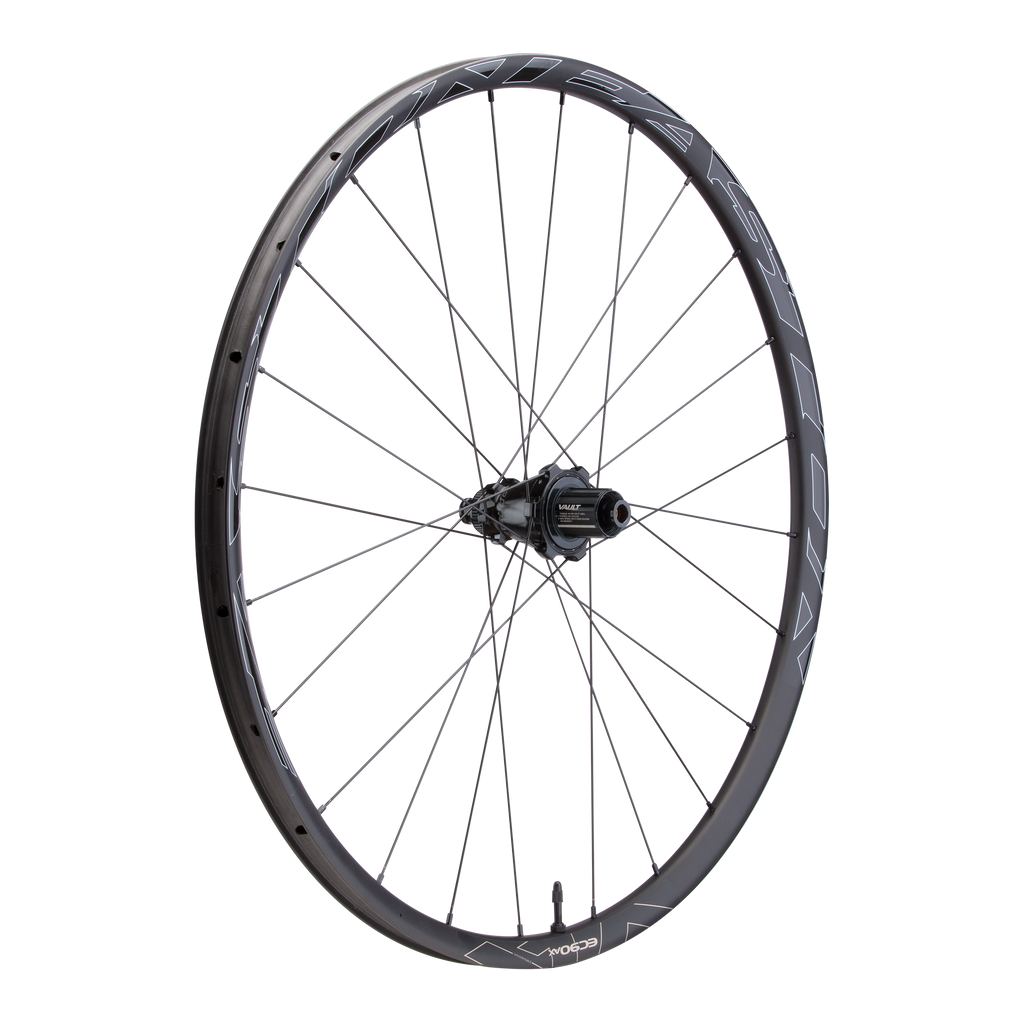

EC90 AX Wheels
Sold Out
EC90 AX wheels are built to keep you rolling, wherever the path less traveled leads. Wide, 24mm internal rims on both wheelsets are optimized for gravel tires 35mm and larger, giving you a more confident tire stance for control on the ground during your expansive adventure rides, single track forays and unrelenting gravel races. Like all our EC90 wheels laced to Vault disc hubs, the EC90 AX wheelset is covered by our Carbon Confidence guarantee.

WHEELSET WEIGHT - 1470  g

FINISH - GLOSS CARBON / VINYL DECALS

TYPE - TUBELESS READY CARBON CLINCHER

RIM MATERIAL - CARBON

RIM DEPTH - 21MM

INTERNAL RIM WIDTH - 24MM

EXTERNAL RIM WIDTH - 31MM

SPOKES - SAPIM STRAIGHT-PULL DOUBLE BUTTED

SPOKE PATTERN - 24 / 3X

BRAKING SURFACE - DISC - CENTER LOCK ROTOR MOUNT

NIPPLE TYPE - DT EXTERNAL ALLOY - EASTON VAULT CENTER-LOCK 12X100 /  12X142*

ENGAGEMENT - 60 POINT, 6°

BEARING TYPE- SEALED CARTRIDGE BEARINGS
