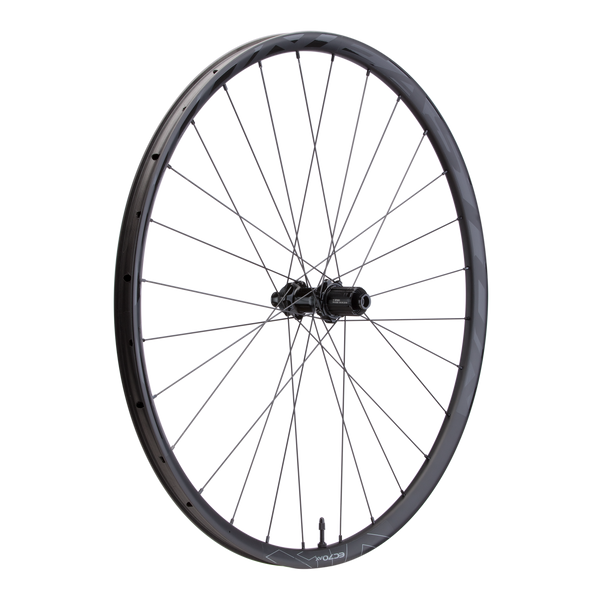

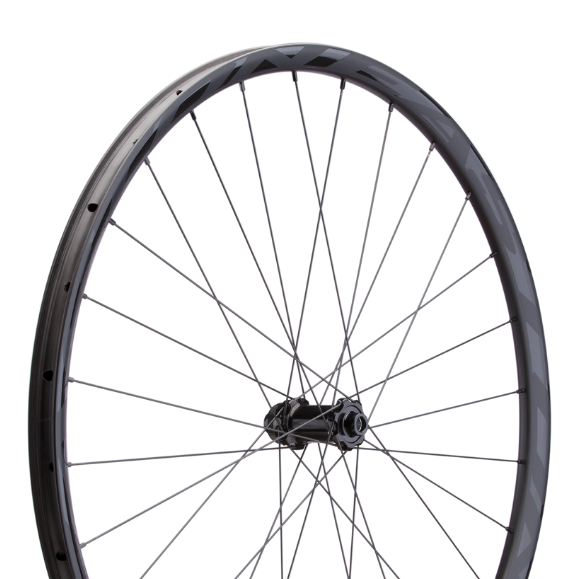

EC70 AX Wheel EC70 AX Wheel
In stock
The EC70 AX wheels connect EC70 carbon rims to our proven X5CL hub with 28 3x double butted Sapim straight pull spokes. End cap and axle components are available for all major industry standards.
Wide, 24mm internal rims are optimized for gravel tires 35mm and larger, giving you a more confident tire stance for control on the ground during your expansive adventure rides, single track forays and unrelenting gravel races.
Our Easton Overland team and SDG Muscle Monster team riders have put these wheels to the test, racing prototypes at DK200, with Amity Rockwell taking the DK Queen title and Amanda Nauman finishing 6th, while at Lost and Found 2019 Michael Van Den Ham came in 4th and Craig Richey took 6th.
The EC70 AX wheels connect EC70 carbon rims to our proven X5CL hub with 28 3x double butted Sapim straight pull spokes. End cap and axle components are available for all major industry standards.
Wide, 24mm internal rims are optimized for gravel tires 35mm and larger, giving you a more confident tire stance for control on the ground during your expansive adventure rides, single track forays and unrelenting gravel races.
Our Easton Overland team and SDG Muscle Monster team riders have put these wheels to the test, racing prototypes at DK200, with Amity Rockwell taking the DK Queen title and Amanda Nauman finishing 6th, while at Lost and Found 2019 Michael Van Den Ham came in 4th and Craig Richey took 6th.
Shipping Policy
FREE SHIPPING ON ORDERS OVER $100
Nice and easy, you wont pay for shipping on any order over $100.
$10 FLAT RATE SHIPPING
For all orders under $100, you'll only pay $10 to ship anything on our site anywhere! Please note we cannot ship to P.O. Boxes or APO/FPO addresses. Typically orders will take 1-2 business days to prepare and another 3-7 days to arrive at your address. Of course we try to ship as fast as possible so you're on your bike faster!
Returns & Exchanges
30 Day Returns
Got the wrong size? don't like the colour? no problem, we accept returns up to 30 days from you receiving it. All product must be in new, uninstalled condition with the original packaging intact. To set up a return click here
and fill out an RA request form and a customer service rep will reply with instructions to return it.
Shipping Policy
FREE SHIPPING ON ORDERS OVER $100
Nice and easy, you wont pay for shipping on any order over $100.
$10 FLAT RATE SHIPPING
For all orders under $100, you'll only pay $10 to ship anything on our site anywhere! Please note we cannot ship to P.O. Boxes or APO/FPO addresses. Typically orders will take 1-2 business days to prepare and another 3-7 days to arrive at your address. Of course we try to ship as fast as possible so you're on your bike faster!
Returns & Exchanges
30 Day Returns
Got the wrong size? don't like the colour? no problem, we accept returns up to 30 days from you receiving it. All product must be in new, uninstalled condition with the original packaging intact. To set up a return click here
and fill out an RA request form and a customer service rep will reply with instructions to return it.
WHEELSET WEIGHT - 1515 g
FINISH - GLOSS CARBON / VINYL DECALS
TYPE - TUBELESS READY CARBON CLINCHER
RIM MATERIAL - CARBON
RIM DEPTH - 21MM
INTERNAL RIM WIDTH - 24MM
EXTERNAL RIM WIDTH - 28MM
SPOKES - SAPIM STRAIGHT-PULL DOUBLE BUTTED
SPOKE PATTERN - 28 / 3X
BRAKING SURFACE - DISC - CENTER LOCK ROTOR MOUNT
NIPPLE TYPE - DT EXTERNAL ALLOY
FRONT/REAR HUB - EASTON X5 CENTER-LOCK 15X100/QR OR 12X100 / 12X142/QR
BEARING TYPE - SEALED CARTRIDGE BEARINGSWHEELSET WEIGHT - 1515 g
FINISH - GLOSS CARBON / VINYL DECALS
TYPE - TUBELESS READY CARBON CLINCHER
RIM MATERIAL - CARBON
RIM DEPTH - 21MM
INTERNAL RIM WIDTH - 24MM
EXTERNAL RIM WIDTH - 28MM
SPOKES - SAPIM STRAIGHT-PULL DOUBLE BUTTED
SPOKE PATTERN - 28 / 3X
BRAKING SURFACE - DISC - CENTER LOCK ROTOR MOUNT
NIPPLE TYPE - DT EXTERNAL ALLOY
FRONT/REAR HUB - EASTON X5 CENTER-LOCK 15X100/QR OR 12X100 / 12X142/QR
BEARING TYPE - SEALED CARTRIDGE BEARINGS
Rim Pressure Guide
X5CL Hub Diagram (Rear)
X5CL Hub Diagram (Front)
Rim Pressure Guide
X5CL Hub Diagram (Rear)
X5CL Hub Diagram (Front)
